TITAN

FRONT LOADER REFUSE TRUCK

Arm your route for success with the Titan high compaction heavy duty front loader. Engineered for performance, durability and ease of maintenance, this front loader is designed to work hard for years to come.

THE TITAN FRONT LOADER

Titan Performance
Titan Lift Arm
Titan Body
Titan Tailgate
Titan Controls
Compaction
Cycle Times
Flexible Options
Cardboard Package

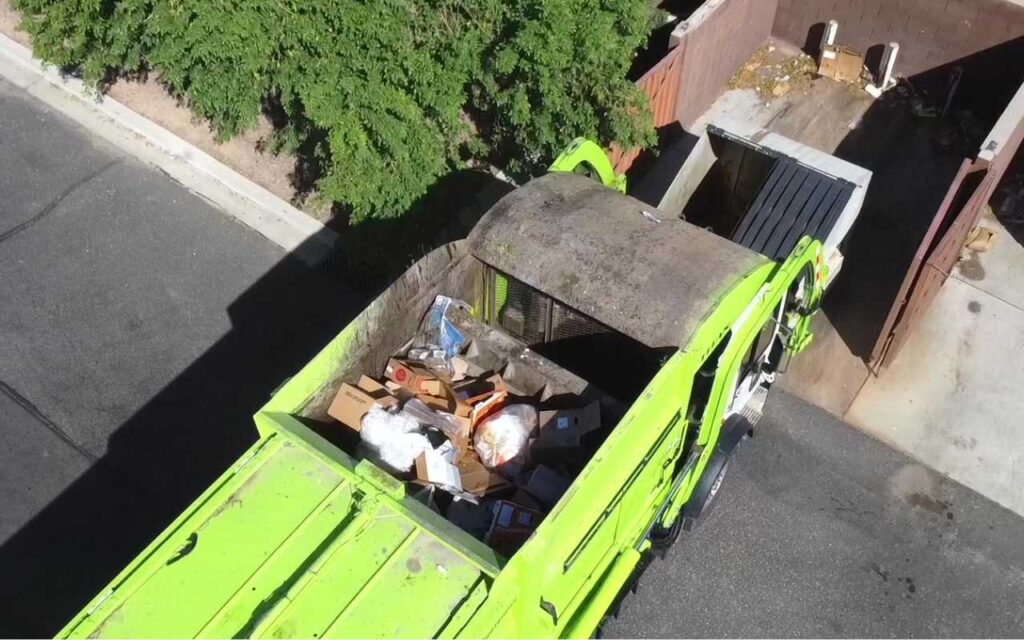

Titan has a compaction rating as high as 1,000 pounds per cubic yard when properly spec’d. Optional high compaction cylinder upgrade available, ideal for recycling routes.

Titan gets the job done efficiently with cycle times as fast as:

  • Pack Cycle of 25 Seconds
  • Arm Cycle of 16 Seconds
  • Full Eject Cycle of 31 Seconds

*Expect slower cycle speeds for CNG powered or 9L powered chassis.”

Titan can be equipped with many available options such as:

  • Liners
  • Material retention teeth
  • Service hoist for easier maintenance access
  • Long and residential fork length options
  • Cardboard Package
  • Various tool holder locations
  • Dozens of work & safety light options

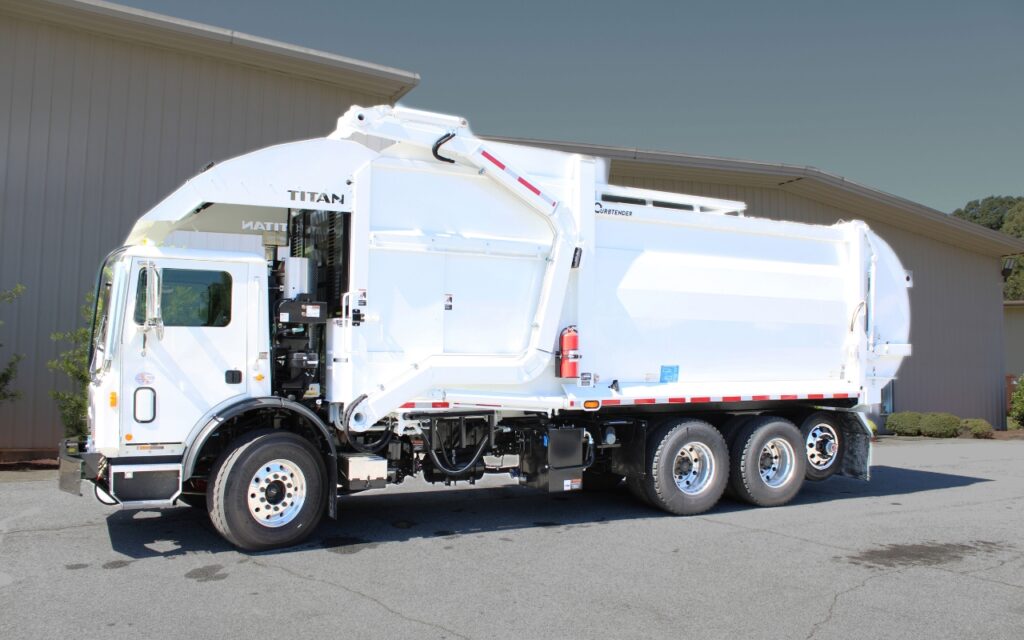

  • Additional safety items such as fire extinguisher, wheel chalk holders, safety cone holders, tire chain holders, etc.

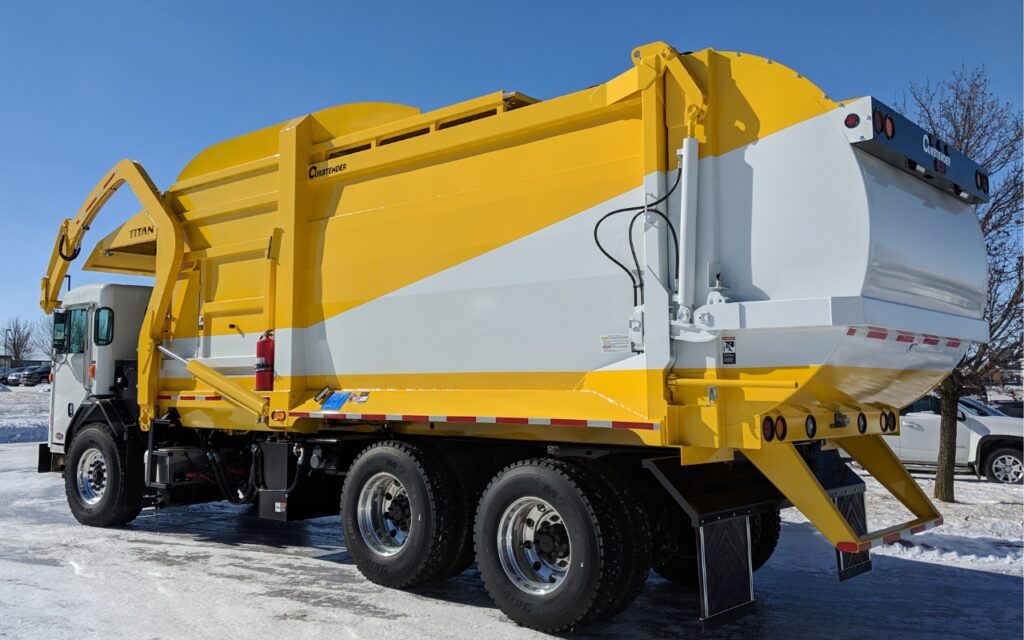

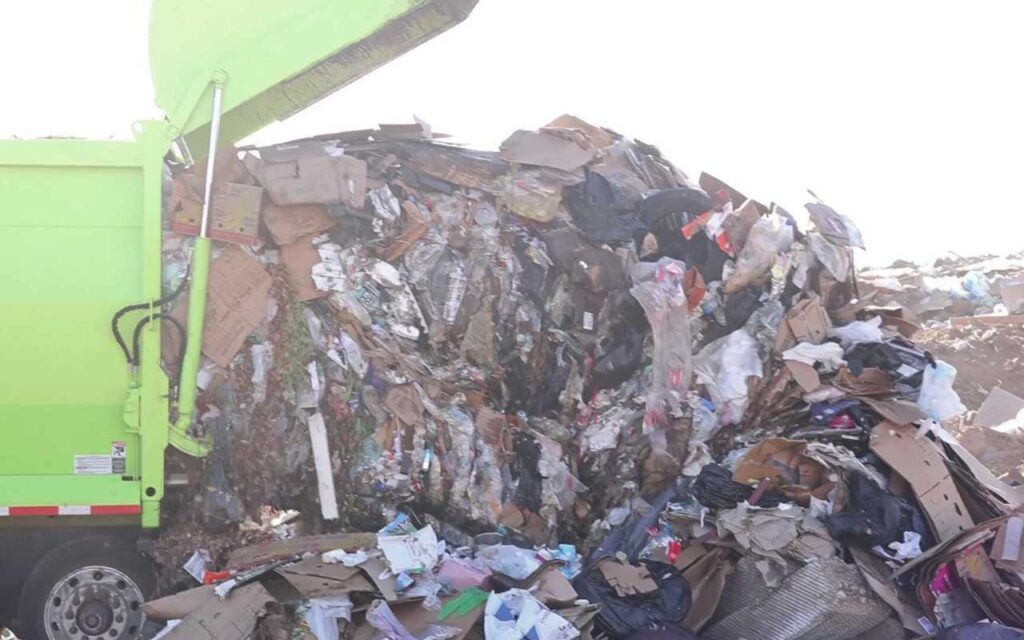

Titan is available with a “Cardboard Package” option. Haulers on cardboard or recycling routes have always struggled to maximize payload. With the cardboard package, haulers experience a dramatic increase in total payload. Curbtender installs high performance hydraulic cylinders and other proprietary tweaks to the system to help condense cardboard material more efficiently. The result becomes vividly clear the first time you eject a “cardboard loaf” at the transfer station.

Standard Lift Arm
Forks

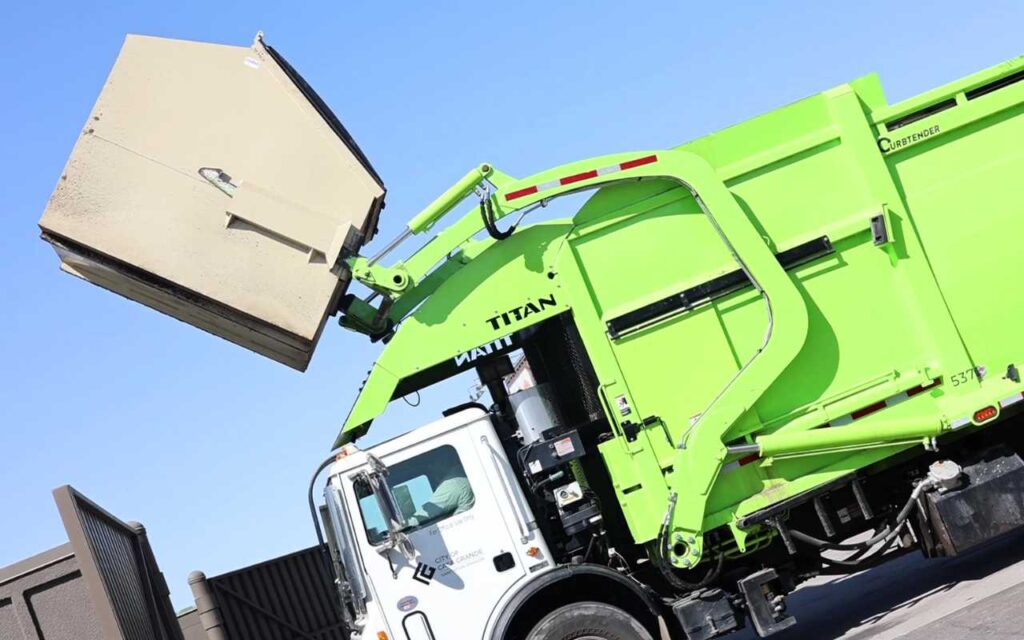

Titan comes standard with single piece bolt-on arms that feature an 8,000 LB structural rating. Titan utilizes torque tube bushings in a split block design with bronze bushings for easy maintenance of the arm tube. A spacer extends the stop pad and block off of the tube to save wear and tear as well as keeping cans from hitting the cab.

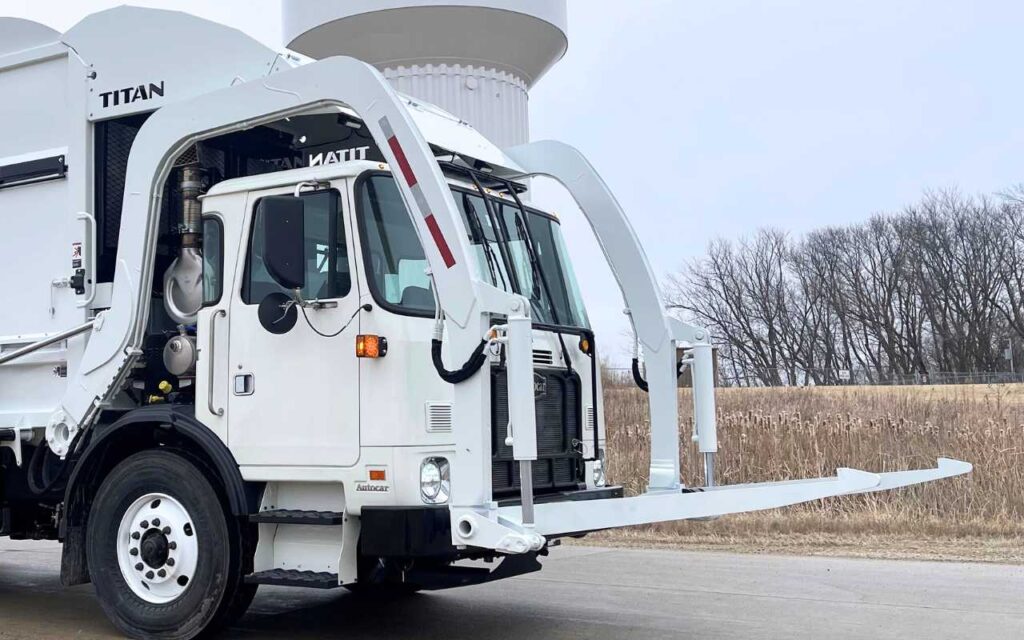

Standard fork length is 50″. Forks are also available in long and residential lengths.

Capacity
New Improvements
Serviceability

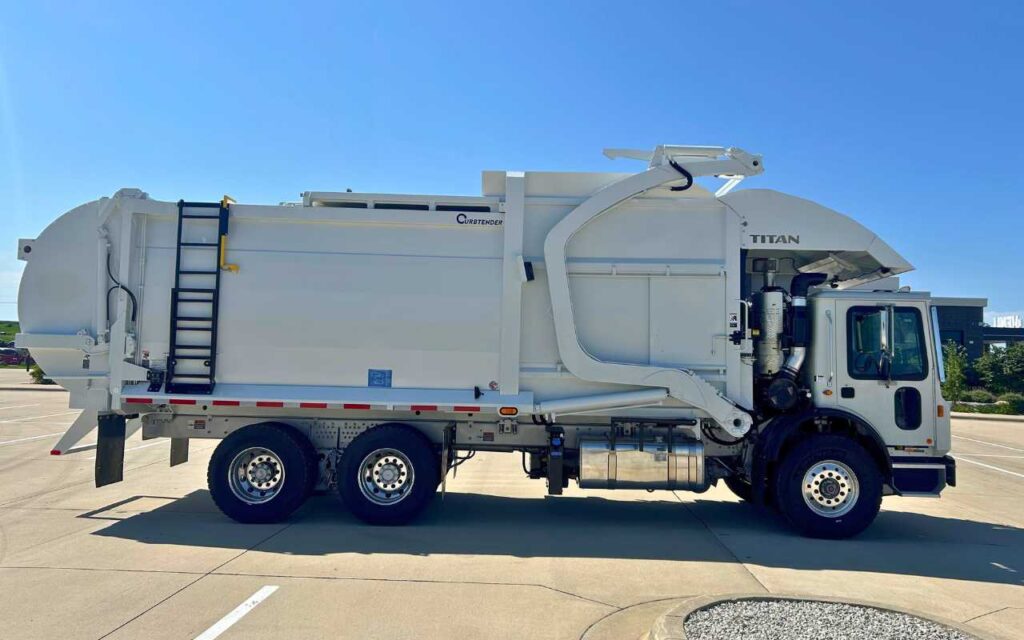

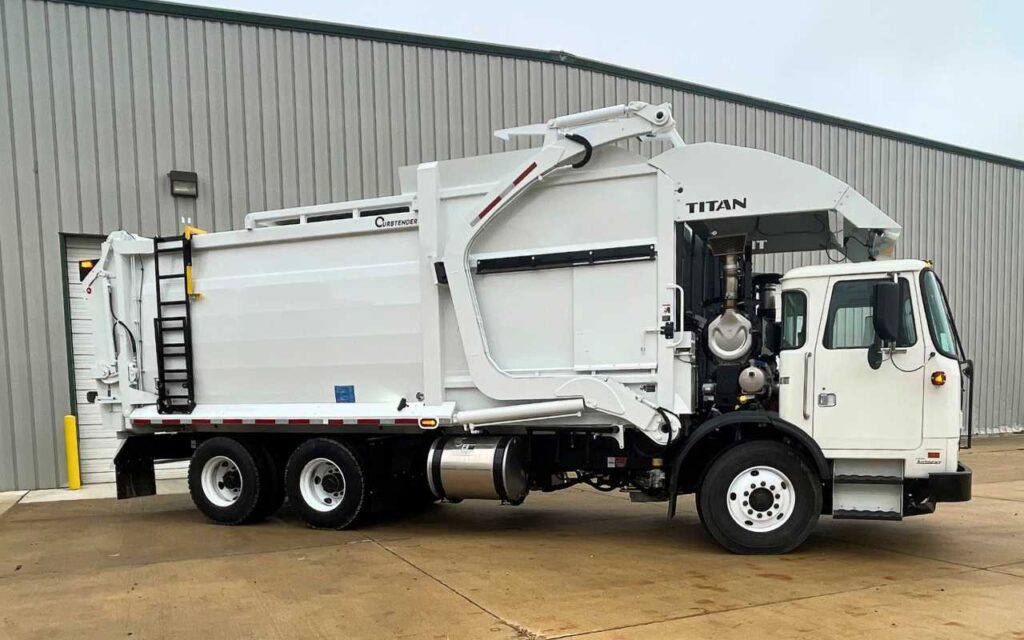

Titan is available in body sizes of 40 and 44 cubic yard models.

Titan underwent a comprehensive product improvement in 2024 using feedback from customers, dealers, and chassis partners. New design features include:

  • Bolt-on packing and eject cylinder mount design that allows for easy cylinder replacement
  • Improved body construction allows for easily rebuilt floors later in the truck’s life
  • Improved pack panel wear shoe design is incorporated to allow for easy shoe replacement
  • Valve assembly relocated below the body away for easy access and away from engine heat
  • Out-of-tank hydraulic oil filers.
  • Hydraulic tank
  • Integrated body sump of 100+ gallon capacity
  • Adjustable deacceleration valve for arms
  • Side folding roof access ladder with roof grip tape
  • Dual hopper access sliding doors
  • Radius cab shield

Titan underwent a comprehensive product improvement in 2024 that focused on improved serviceability to extend the life or your truck. These include:

  • Bolt-on packing and eject cylinder mount design that allows for easy cylinder replacement.
  • Improved body construction allows for easily rebuilt floors later in the truck’s life.
  • Improved pack panel wear shoe design is incorporated to allow for easy shoe replacement.
  • Valve assembly relocated below the body away for easy access and away from engine heat.
  • Out-of-tank hydraulic oil filers.
Tailgate

The Titan’s flanged tailgate and tubular reinforcement add strength and durability. The lift-and-latch cylinder mechanism reduces complexity and parts. The latch itself is heavy duty cast iron. The tailgate is controlled by an in-cab tailgate switch along with a tailgate raise alarm. There are many options available as well, including:

    • Flat Tailgate (40yd)
    • Bubble Tailgate (44yd)
    • Standard or full height seal option
    • Tailgate mounted ladder option
    • Tailgate cylinder remote lube line option

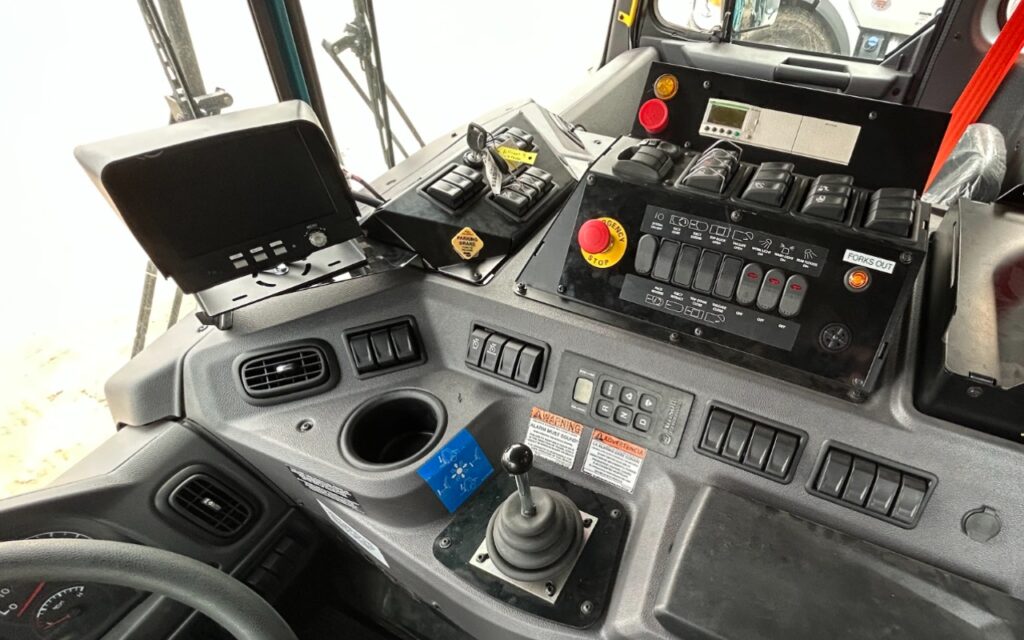

Air-Over-Hydraulic
  • Simple, Durable Air-Over-Hydraulic Controls
  • Single Joystick or Dual Lever Control Options
  • Ergonomic dash integration on established chassis models
  • Hydraulic oil filter and level monitoring systems
  • Multiple Camera Location options (up to 4 cameras on the body)
